PMARC Labs: Finger-scale actuators
that measure force.

PMARC Labs builds finger-scale actuator modules for robotic hands: powered motion, position sensing, and direct force sensing in one small unit.

Wireframe drawing of a robotic hand, with a PMARC Labs actuator module at every joint, holding a PMARC Cube
Backed by 75+ grants, programs, and sponsors from
NASANASA Rhode Island Space Grant Brown University NVIDIA Inception Program 1517 Fund Medici grant Brown AI Studio, formerly B*, the Brown Startup Fellowship Dremel
YuXin Prusa Research iFixit Xometry PTC (Creo) igus Elegoo Hakko Polymaker Wiha Tools
CeramicSpeed Kyowa Seeed Fusion Indium Corporation Lindström Chemtronics Proxxon Techspray SpeedCubeShop Smalley Harwin E3D Precision Brand Protocase OSH Park Excelta Master Appliance Miller-Stephenson
Moody Tools ODrive Robotics Fowler High Precision Actuonix OpenELAB Century Spring American Weigh Scales STEPPERONLINE Protopasta Fix It Sticks Bolt Depot OSH Cut Satellite City Beacon Adhesives Dri-Slide System Three Resins The Lab Stockroom KMS Bearings
SendCutSend Rex-Cut Abrasives PopSockets Flex-I-File Flitz Kate's Real Food Jukebox E-Z LOK Bertech TotalBoat SchmartBoard Simply Bearings Finish Line Durham Manufacturing Gaffer Power Wall Control Wham Bam Systems Layerneer
Inside the Module

A joint actuator with built‑in torque and position sensing.

01

Output flange

02

Torque-sensing flexure

03

Planetary stage

04

Module housing

05

Frameless motor

06

Encoder and drive board

Design specs
Spec80 mm40 mm20 mm
Length102 mm72 mm34 mm
Mass560 g100 g12 g
Torque45 N·m5.5 N·m0.8 N·m
Continuous17 N·m2 N·m0.3 N·m
Resolution9 mN·m1 mN·m0.2 mN·m
Thesis

Torque-sensed joints exist for arms and legs. Not for fingers.

The problem

Torque-sensed joints exist for arms and legs. They do not exist at finger scale. A finger joint needs high gear reduction to get useful torque from a tiny motor, and that reduction buries the force signal in friction, so estimating force from motor current simply stops working.

Our approach

PMARC Labs measures torque on the output side of the gearing, with a flexure built into the module, so each reading is the load the joint actually carries. The module is small enough to be the finger joint itself, and its mechanism was first proven at palm scale in the PMARC Cube.

Roadmap

From a proof of concept to production actuator modules.

  1. Proven

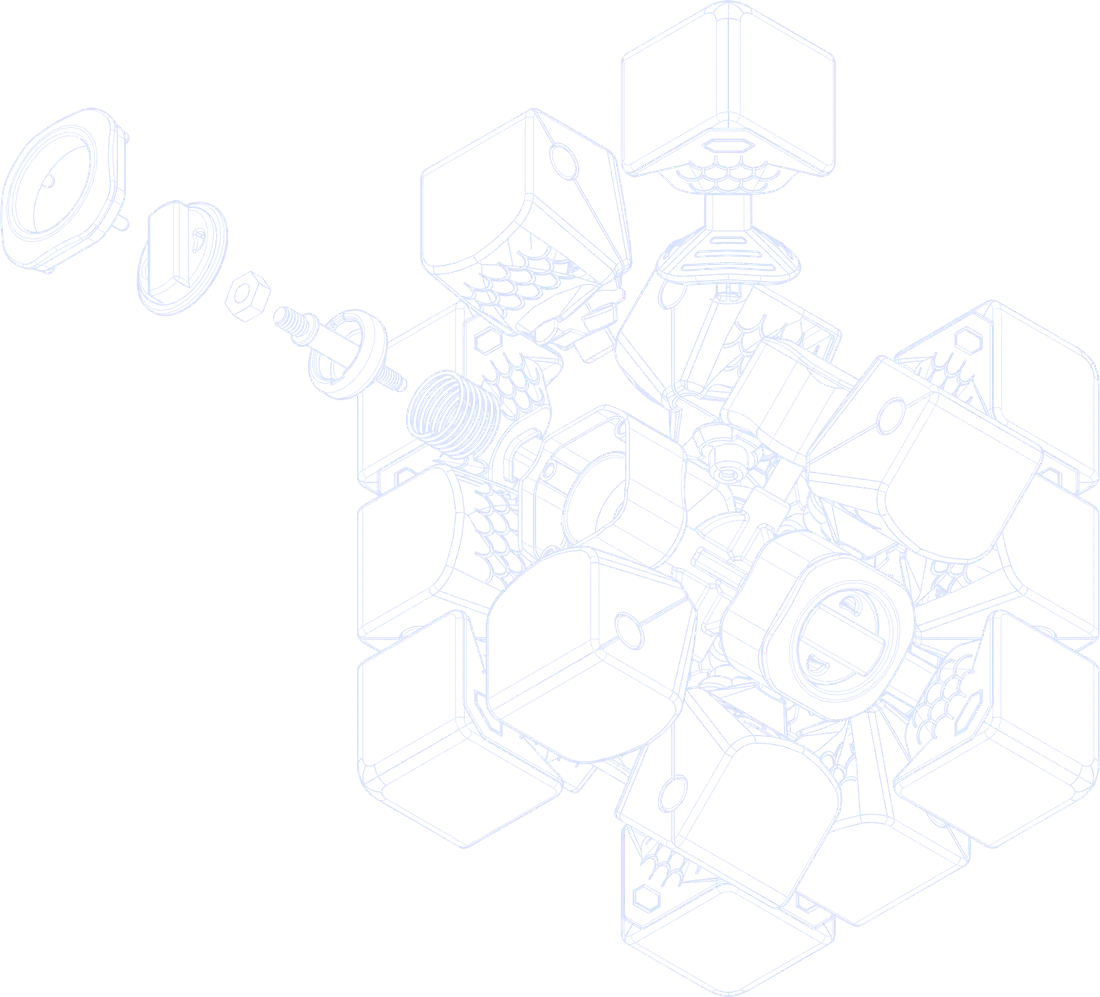

    PMARC Cube

    Proved the variable-resistance mechanism at palm scale.

    View PMARC
  2. Now

    Production module

    Engineering the joint-scale actuator module for production.

    Inside the module
  3. Next

    First production run

    The first run of modules, each calibrated before it ships.

    Read the thesis
  4. Planned

    First design win

    A hand builder designs the module into a prototype hand.

    Get in touch

Work with PMARC Labs

We work with companies and labs that are building dexterous and humanoid hands.
